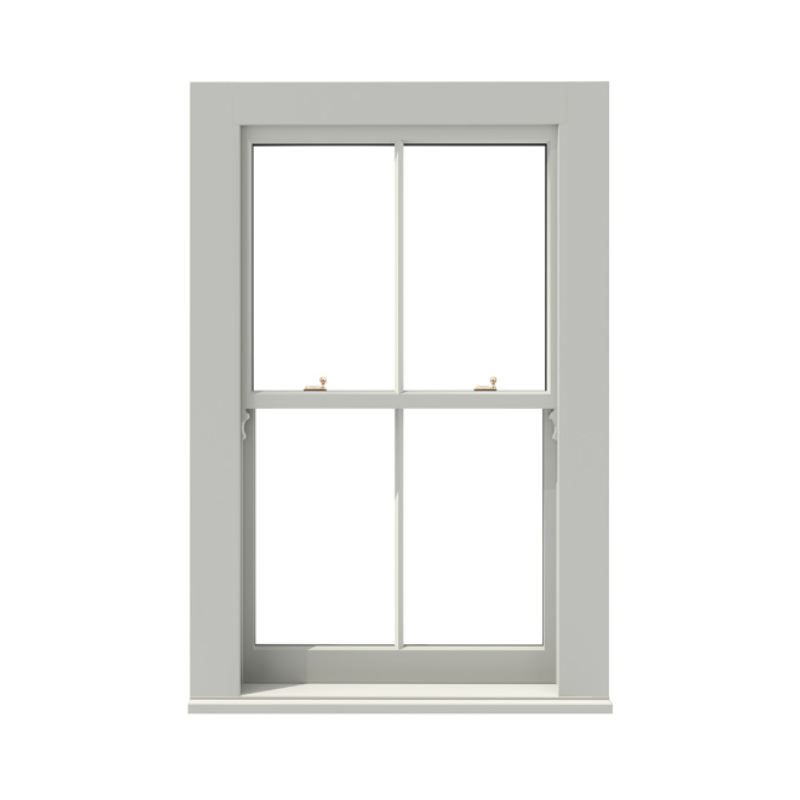

Box Sash Windows
Come in either Box Sash (with pulley mechanism) or Spiral Balance Sash (with spiral balance), all certified to PAS24:2016 & BS6374.
Sash windows have a rich history, becoming a staple of the English landscape. With our expertise, we can replicate their classic designs to match the style and era of your building. We also offer a Heritage (140 mm) option with narrow profiles and single glazing, perfect for conservation areas and listed buildings. The opening mechanism uses weights for authenticity.
Available Options for Box Sash and Spiral Balance Windows
- OPENING TYPES
- Top & bottom sash sliding (double hung)
- One sash sliding, one sash fixed (single hung)
- Top & bottom sash fixed
- BOX WIDTH
- Standard: 152 mm (Box Sash)
- Heritage: 140 mm (Box Sash)
- 1522mm (Spiral Balance)
- DOUBLE GLAZING UNIT
- From 12 mm to 24 mm (Both Box Sash and Spiral Balance)
- OPENING MECHANISM
- Steel weights + cords (Box Sash)
- Spiral balance system (Spiral Balance)
PAS 24:2016 Security & Secured By Design
Double or Triple Glazed
Factory Finished and Installed by Us

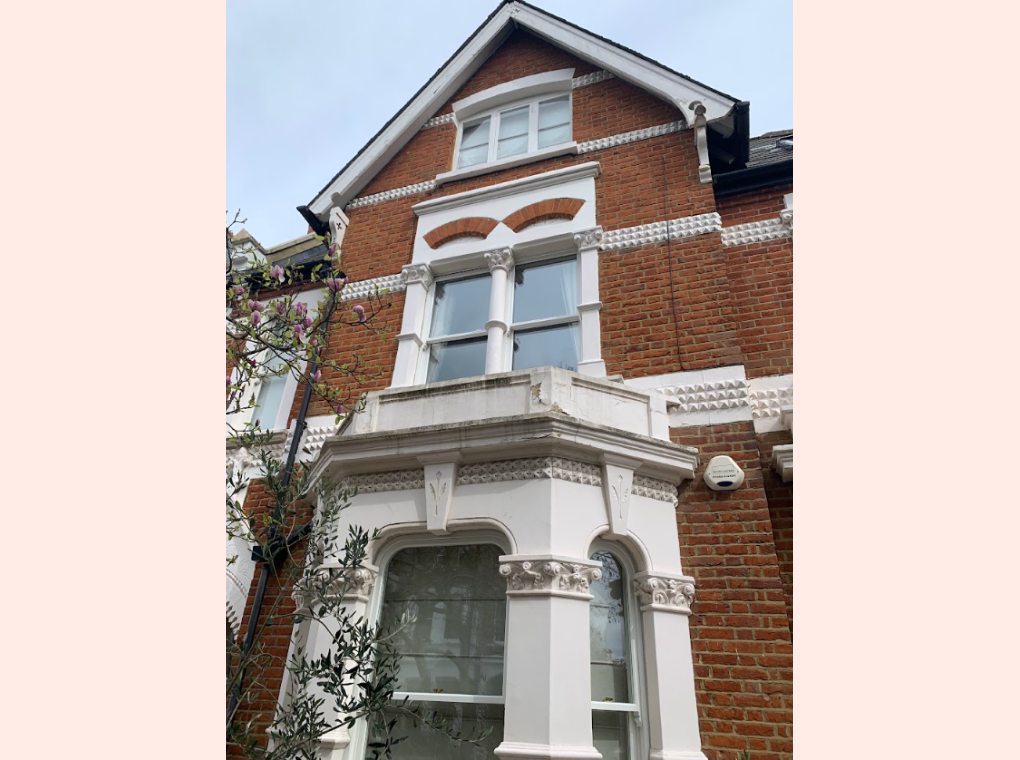

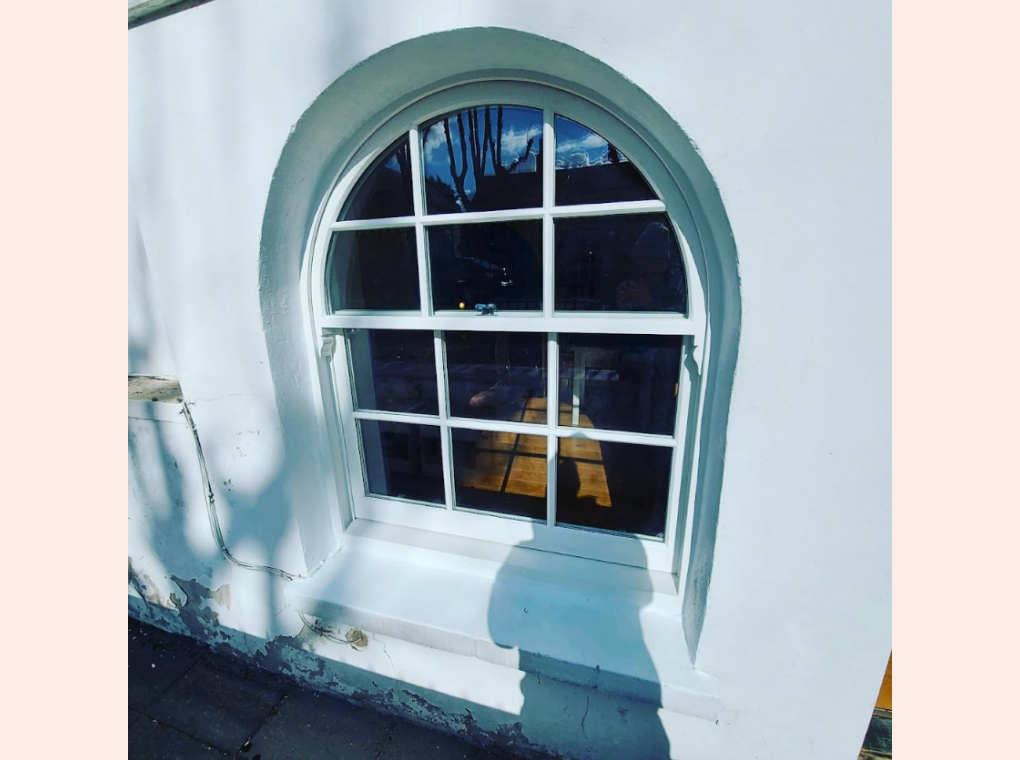

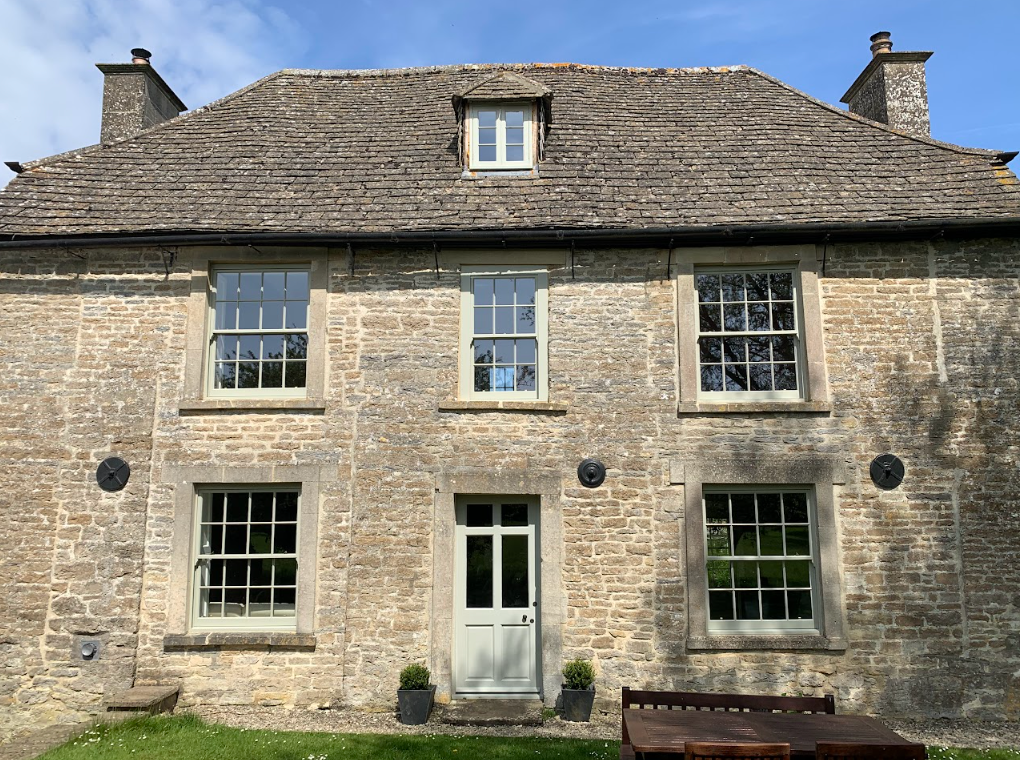

Project Images
Our workshop have manufactured and installed hundreds of windows and doors across the South East and South West of the UK.
Internally Beaded and Machined to Specification
Thin Sightlines
Certified to BS6375-1 2009 Weather Tightness
Sliding Sash Windows
Available in a range of styles all certified to PAS24:2016 and BS6374.
Document Q Compliant
Document L Compliant
Document M Compliant
Glazing
The choice of glazing is extremely important when determining the final equipment of windows. A properly constructed glazing unit increases the level of security, anti-burglary, acoustic insulation and privacy. View our Glazing page here.
Box Sash Vs. Spiral Balance & Furniture
All our hung windows are standard equipped with hardware that guarantees comfortable and safe use.

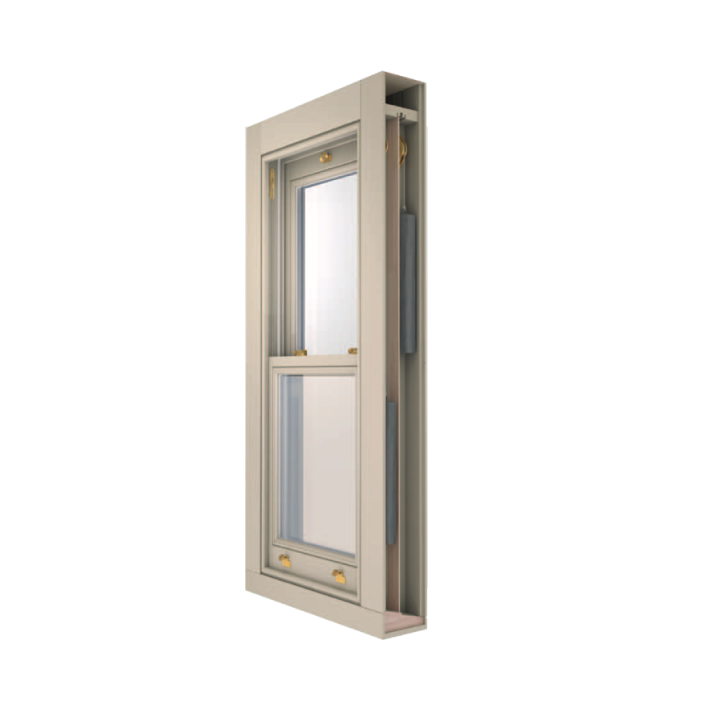

Box Sash Windows: Box sash windows represent the most classic style of sash windows. They utilise a traditional system of weights and cords for operation.

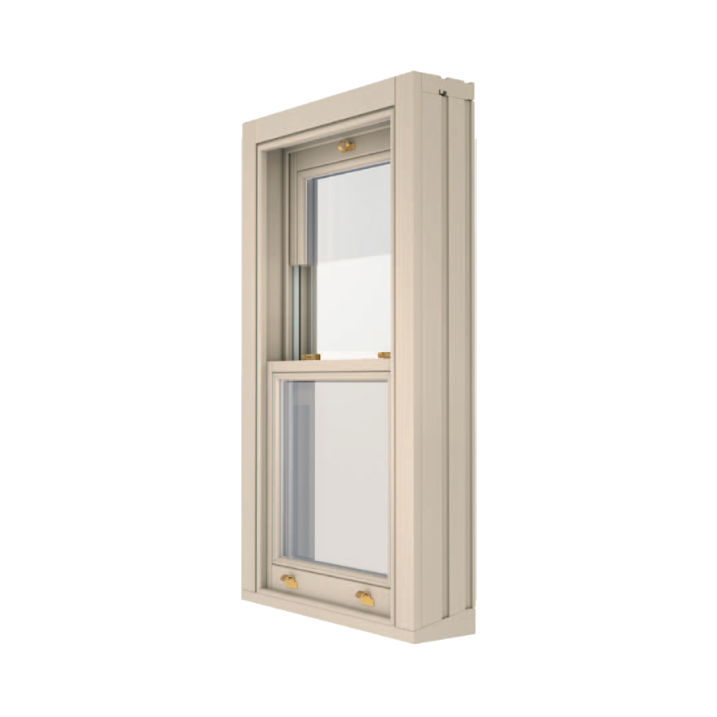

Spiral Balance Windows: Spiral Balance Sash windows are a contemporary take on traditional box sash windows. They operate using a spring system, allowing for a slimmer profile and larger glazing area compared to box sash windows. This design offers two box widths: 170 mm and 150 mm, with options for 24 mm or 20 mm glazing.

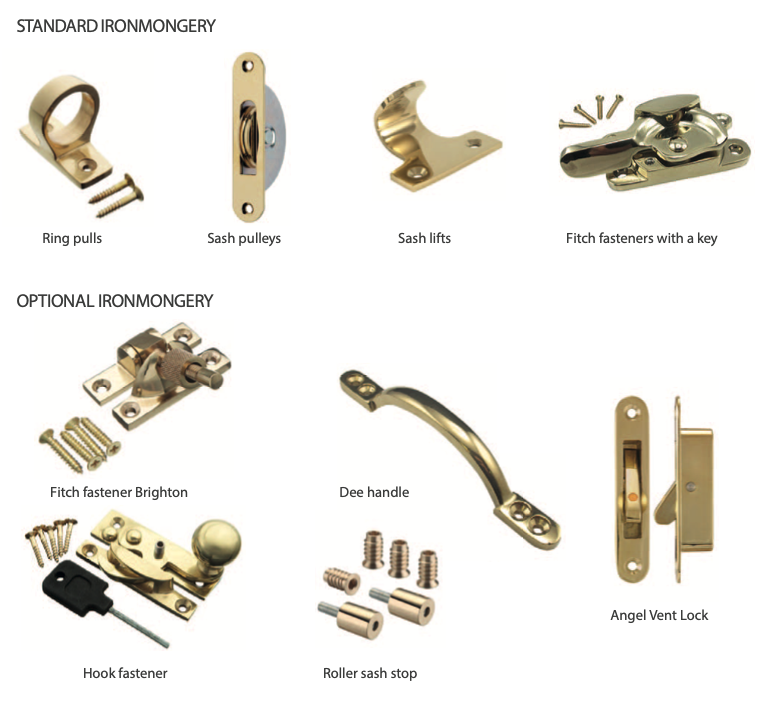

Standard & Optional Ironmongery: We use a range of ironmongery, contact us if you have specific requirements. We are of course happy to advise.
Get in Touch for A Quote
Discover our exclusive deals and time limited offers, designed to make your bespoke timber windows more affordable than ever.
